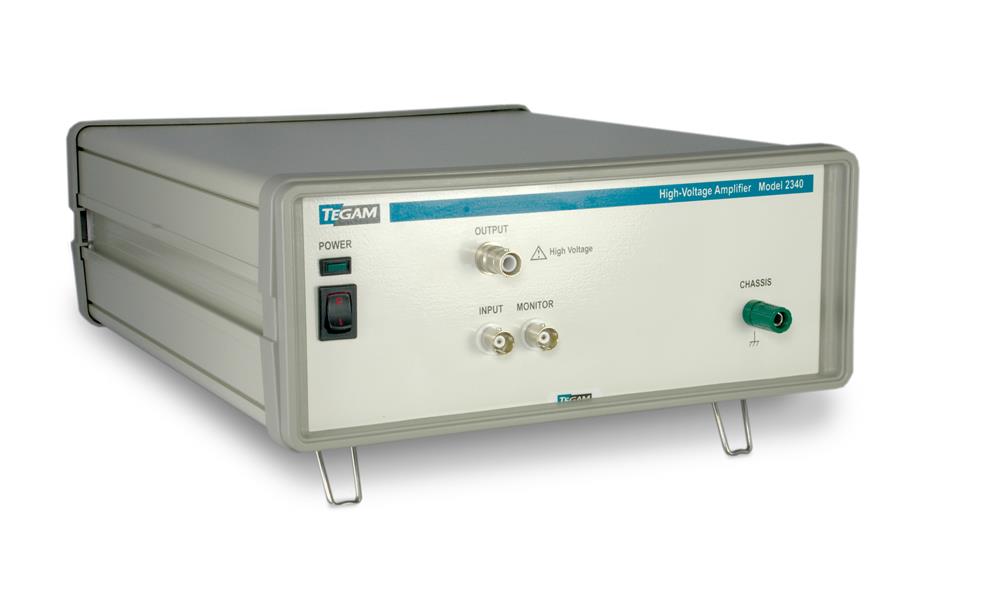

TEGAM 2340 ເຄື່ອງຂະຫຍາຍສຽງແຮງດັນສູງຊ່ອງດຽວ (0 ~ ±200 V; 40 mA; 1 channel)
Electrical Specifications
Number of Channels: 1
Input Impedance: 50 Ω Direct Coupled
Output Voltage Range: 0 to ± 200 V Direct Coupled (400 V p-p)
Maximum Output Current: 40 mA per channel
Output Impedance: < 0.2 Ω
Voltage Gain: +50 Fixed (Special Order +10-100)
Sine Wave Distortion (THD): See Figure 4 (datasheet)
Small Signal Bandwidth: DC to 2 MHz -Typical (-3 dB) - Refer to Figure 1 (datasheet)
Full Power:
200 kHz / 400 Vpp Sine - Typical (-0.1 dB) (CL<200 pF)
Slew Rate: >250 V/μSec
Square Wave Response: < 0.8 μSec for 200 Volt Step
Aberrations:
< 2 %
50 Ω Voltage Monitor Outputs 50 Ω Input Z (200:1 Ratio)
(One for each Channel) > 1 MΩ Input Z (100:1 Ratio)
Safety: Conforms with IEC 61010-1, CE Marked
Environmental
Operating Temperature: 0 ºC to +45 ºC (+32 ºF to +113 ºF) Ambient
Storage Temperature: -20 ºC to +50 ºC (-4 ºF to +122 ºF)
Humidity Range: < 80 % RH Non-Condensing
General
Input Supply Voltage: 110/220 50/60 Hz – Rear Panel Selectable
Power Rating: 100 VA; 80 W
Dimensions: (H x W x L) 4.51 in x 10.14 in x 11.81 in (11.5 x 25.8 x 30.0 cm)
Weight (approximate): 4.5 kg (10 lb)
Recommended Calibration Cycle: 1 Year
Warranty: 1 Year Parts and Labor
Included Accessories:
User’s Manual - P/N 810044-CD
BNC to 01x High-Voltage BNC Cables (3 ft) - P/N 740949
