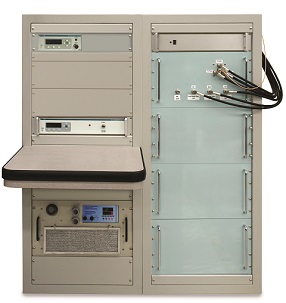

TEGAM 1314 RF ຄວາມແມ່ນຍໍາພະລັງງານສູງ calorimeters (50 Hz - 3000 MHz)
Measurement Ranges
Frequency (MHz): 50 Hz to 3000 MHz
Power (W): 10 W to 250 W
Connector Type: Type N (female)
Basic Accuracy: 0.3 W + 0.3% Rdg
Power Requirements:
Calorimeter: 100 – 240 VAC, 1.5 A
Chiller: 100 – 240 VAC, 9.4 A
Chiller (coarse control): N/A
AC Power Source: 104 to 127 VAC, 10 A
AC Power Standard: 100 – 240 VAC, 10 A
Physical Dimensions:
Calorimeter Cabinet: 46 x 22.5 x 56 in (117 x 57 x 142 cm)
Chiller (coarse control): N/A
AC Power Source: 16.75 x 5.25 x 22.6 in (42.5 x 13.3 x 57.5 cm)
Coolant Flow Rate: 1 gallon (3.75 Liters) per minute nominal
Common Specifications:
Drift: < 50% of uncertainty over 48 hours
Input Impedance: 50 Ω nominal
S11 Linear Magnitude: Typical < 0.025 at f < 100 MHz, and <0.1 at f >= 100 MHz
Communication: Ethernet
Cooling Fluid: 25% DOW-Therm SR-1, 75% deionized water
Operating Temperature: 68 to 86 °F (20 to 30 °C)
Storage Temperature: 14 to +122 °F (-10 to +50 °C)
