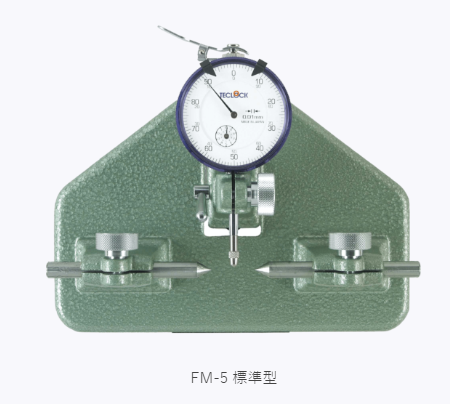

TECLOCK FM-5 Small Bench Center (10mm/0.01mm)

Manufacturer: TECLOCK

Model: FM-5

Origin: Japan

Warranty: 12 months

Measuring Range: 10 mm

Graduation: 0.01 mm

Indicator Error: ±0.015 m

Measuring Force: ≤ 1.4 N

Applicable Dimension:

+ Diameter: Up to φ60 mm

+ Width: Up to 60 mm

Weight: 2 kg

Catalog

 • Suitable to measure eccentricity volume (swing) of various precision shafts, round manufactured work piece, precision gears and pinions.

 • Convex and concave of center can be easily changed according to shape of work piece. Center can be shifted.

 • Standard type (graduation 0.01mm) and precision type (graduation 0.001mm) are available
