Power supply: AC100-120V or AC220-240V 50/60Hz
Power consumption
150W with ABL10PD series driver tool
450W with ABL40/50/100PD series driver tool
600W with ABL150PD series driver tool
Applicable driver tool: ABL10PD series / ABL40PD series / ABL50PD series ABL100PD series / ABL150PD series
Driver tool connecting ca-bles
DEC5 encoder cable
DMC5 motor cable
(included in driver tool package)
Standard length 4M
(Other length up to 10M on request optionally)
I/O interface: Front panel communication port: USB port & RS232C port
Rear panel: Remote control I/O port (NPN/PNP selectable)
ANA OUT terminal
Rear panel optional communication port: USB port with screw lock / RS-232C/CAN/LAN
Standard supply scope
1 x AC power supply cable for AC100-120V or AC220-240V
1 x USB cable (5M)
1 x IFC501 (3M) 14-pin half pitch connector

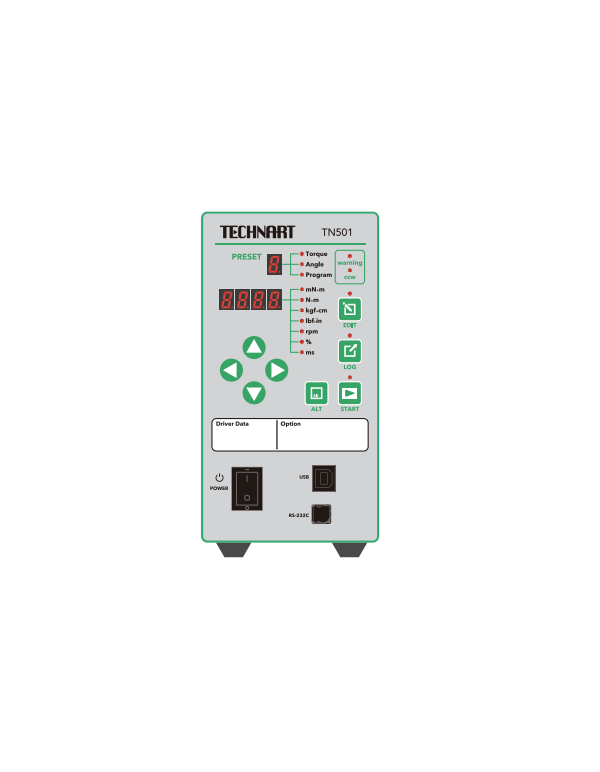

1 x TN501 Customizer for Windows® PC
When optional USB port is added in rear panel: 1 x #2563 USB screw lock bracket
Outer dimensions: W 85mm x H 164mm x D 229mm
Weight: 2.3kg (main body only without cables and connectors)
Operation environments: Within 0~40 deg. C/30~80%RH (no condensation)
Storage environments: Within -10~70 deg. C/10~90%RH (no condensation)
