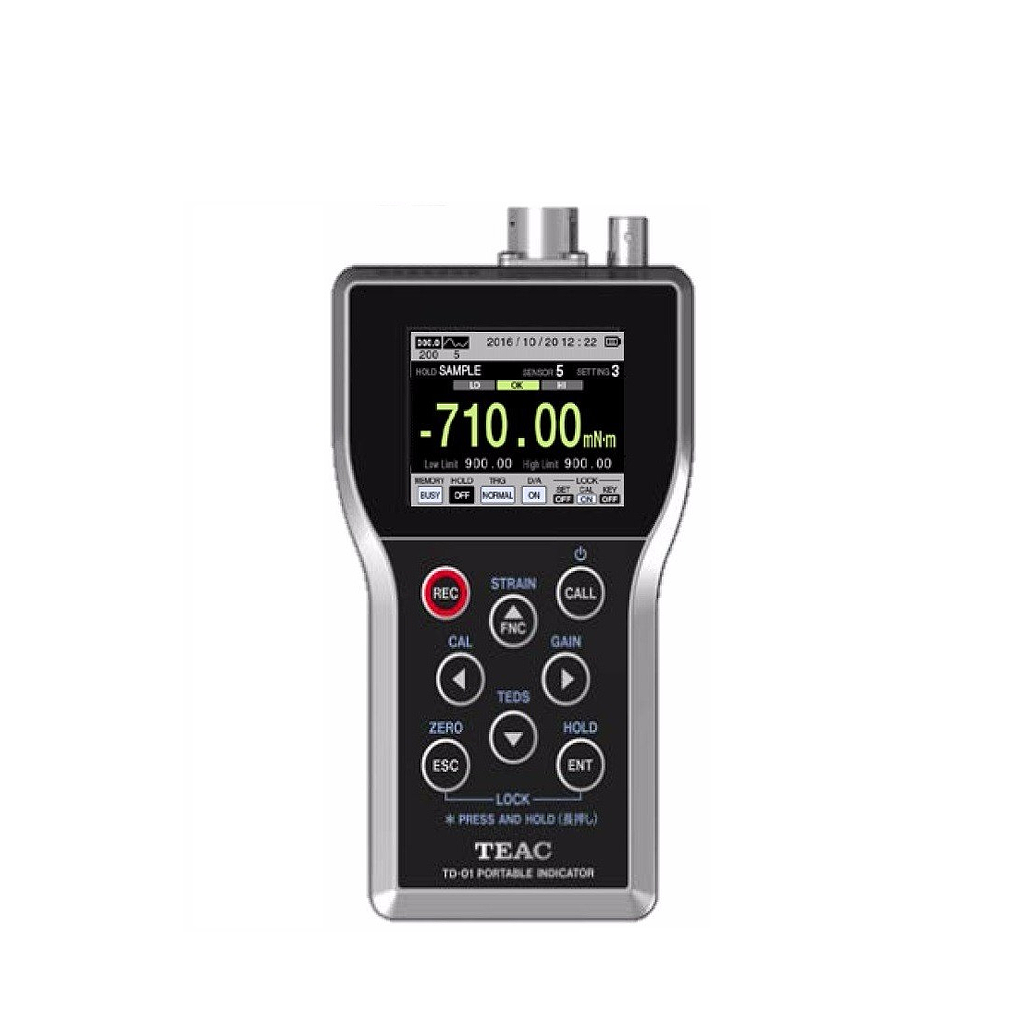

TEAC TD-01 ຕົວຊີ້ວັດດິຈິຕອນແບບພົກພາ
Compatible sensors: Strain gauge transducer
Signal input terminals: Round connector (NDIS7P)/terminal bank(connect only one at a time)
Bridge Voltage: DC, 2.5 V ±5% (30mA maximum current)
Signal input range: ±5 mV/V
D/A output: +2V
Equivalent input/TEDS
Calibration range: 0.3 mV/V-5.0 mV/V
Calibration precision: Within 0.1% F.S. (when using a 1m standard TEAC $8, 6-core shielded cable with 3500 impedance, when 5mV/V)
Precision
Linearity: Within 0.01% F.S. + 1 digit (when 5mV/V)
Zero drift: Within 0.5 µV/°C (input conversion value)
Gain drift: 0.005%/°C or less
A/D conversion: 1000 times/second, 24-bit
Digital filter: Moving average (select from OFF, 16, 32, 64, 128, 256, 512, 1024, 2048)
D/A output
Output connector: BNC
Output voltage: ±2.0 V
Resolution: 70.16 µV typ
Linearity: 0.02% F.S. or less
Zero drift: 0.1 mV/°C or less
Gain drift: 0.003%/°C or less
TEDS function: IEEE1451.4 class 2 mix mode interface
Display
Display: 2.4" color TFT LCD
Display modes: Setting screens, indicator value digital display, graph display, recorded data list display, static strain display
Languages: Japanese/English
Indicator value
Display range: -99999 to 99999
Decimal point: Display position selectable
Power supply: 4 alkaline or NiMH AA batteries
USB bus power (built-in Micro-USB B connector)
Operating temperature range: 0 deg to 40 deg * C
Storage temperature range: - 20 deg~60 deg * C
Operating humidity range: 85% RH or less (without condensation)
External dimensions (WxHxD): Approximately 85mm * 140mm * 35mm without protrusions)
Weight: About 320 g (including batteries)
