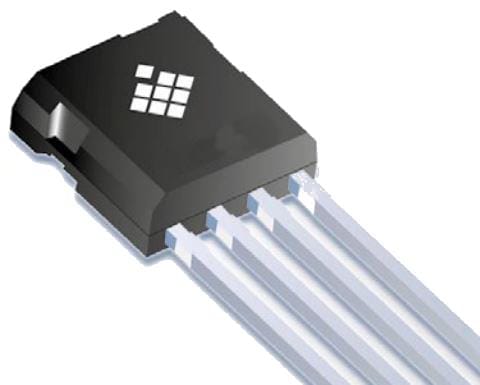

TDK Micronas HAL2455UT-A ບອດຕິດຕູ້ Hall Effect / ອຸປະກອນຈັບສະຕິກສະນີມາກເນຕິກ ອຸປະກອນ Hall-Effect ທີ່ມີຄວາມແມ່ນານສູງ ສາມາດຕັ້ງໂປຣແກຣມໄດ້; ຂະໜາດຂອງຄວາມສະຫງວນແມ່ນ +-30- +-200mT; PWM; ຊຸດ TO92; ອາກາດທີ່ໃຊ້ງານ -40 ຫາ +170 C

Resolution: 12 bit

Output Type: PWM

Sensitivity: 170 mV/mT

Unit Weight: 120 mg

Mounting Style: PCB Mount

Output Voltage: 18 V

Termination Style: Through Hole

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Maximum Output Current: 1.2 mA

Operating Point Min/Max: 30 mT to 200 mT

Operating Supply Current: 7 mA

Operating Supply Voltage: 5 V

Release Point Min/Max (Brp): - 30 mT to - 200 mT

Maximum Operating Temperature: + 170 C

Minimum Operating Temperature: - 40 C
