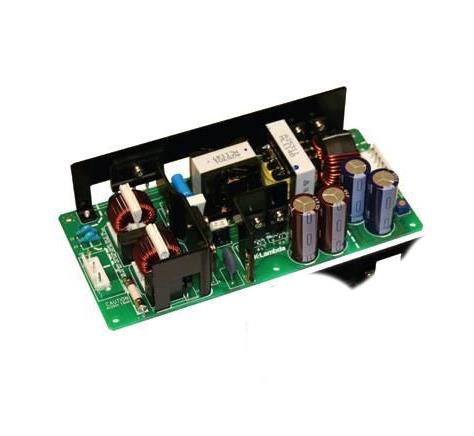

TDK-Lambda ZWS240BP-48/A ຕົວແປປະຕິບັດ AC-DC AC-DC, 115-230VAC, ອອກ 48V 5A, 240W

Width: 95 mm (3.74 in)

Height: 53 mm (2.087 in)

Length: 212 mm (8.346 in)

Approvals: CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1

Compliance: CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1

Efficiency: 91%

Output Power: 240 W

Input Voltage: 85 VAC to 265 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
