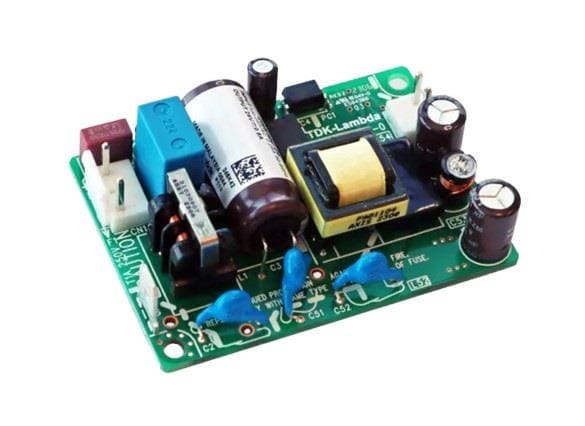

TDK-Lambda ZWS10C-5 ແຫຼ່ງຈົດສະຫຼຸບສະຫຼຸບ 85-265V, 5V 2A, 10W, ເຟີມເປີິດ

Width: 45.7 mm (1.799 in)

Height: 22.1 mm (0.87 in)

Length: 63.5 mm (2.5 in)

Industry: Industrial

Approvals: ENI61000, EC61000

Dimensions: 63.5 mm x 45.7 mm x 22.1 mm

Efficiency: 78 %

Output Power: 10 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 265 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
