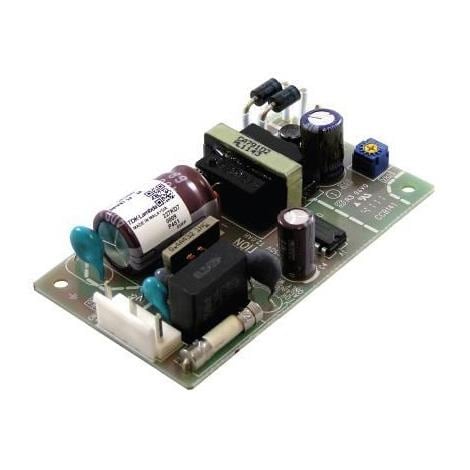

TDK-Lambda ZWS10B-24/A ຕົວແປປະຕິບັດ AC-DC 24V 0.5A 12W

Width: 60 mm (2.362 in)

Height: 32 mm (1.26 in)

Length: 93.5 mm (3.681 in)

Approvals: CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1

Compliance: CSA60950-1, DENAN, EN60950-1, EN50178(OV II), UL60950-1

Efficiency: 85 %

Output Power: 12 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 265 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 10 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
