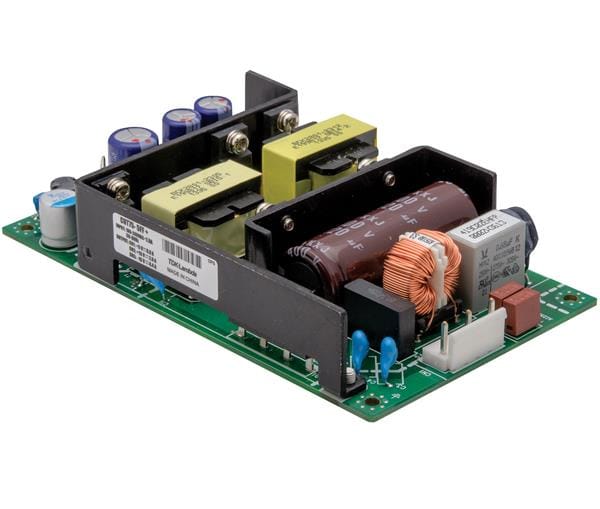

TDK-Lambda CUT75-5FF/TB ເຊັດອຸປະກອນສະໜອງພະລັງງານ Switching Supplies 76W 5V 8A +15V 2.5A -15V 1A BP & S Term

Width: 76 mm (2.992 in)

Height: 27 mm (1.063 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Efficiency: 85 %

Unit Weight: 340.200 g

Output Power: 40 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 265 VAC, 120 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8 A

Output Current-Channel 2: 2.5 A

Output Current-Channel 3: 1 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 15 VDC

Output Voltage-Channel 3: - 15 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
