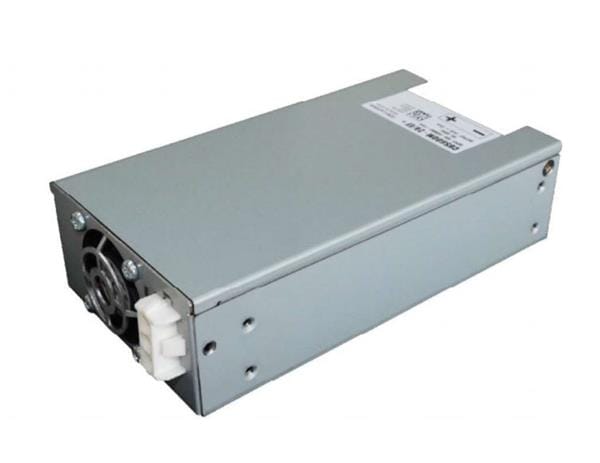

TDK-Lambda CUS600M-28/EF ອະຊີ-ດີຊີ ພາວເລີ ມີດ ແອນ ຟ່ານ 115-230V 602W 28V 21.5A

Width: 85 mm

Height: 42.5 mm

Length: 157 mm

Industry: Medical, Industrial

Approvals: CE, EN, IEC, UL

Dimensions: 157 mm x 85 mm x 42.5 mm

Efficiency: 96 %

Output Power: 600 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 265 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Power - Convection: 400.4 W

Power - Forced Air: 602 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 21.5 A

Output Voltage-Channel 1: 28 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
