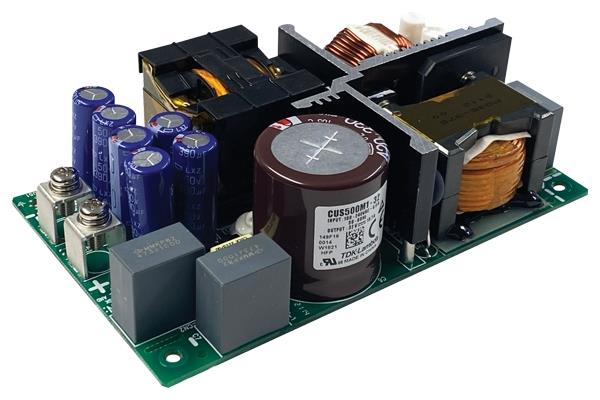

TDK-Lambda CUS500M1-48 ເພາະພະລັງ AC-DC Med 115-230VAC ອອກ 48V 10.5A 504W

Width: 76.2 mm (3 in)

Height: 34 mm (1.339 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Efficiency: 95.5 %

Output Power: 500 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 265 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 302.4 W

Power - Forced Air: 504 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10.5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
