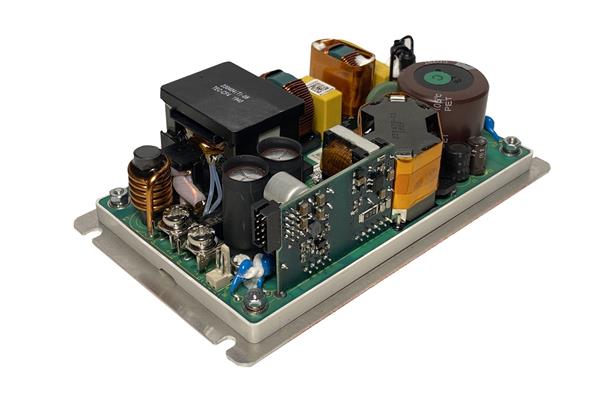

TDK-Lambda CUS400M-24/B ເຟສດຽວ Med 400W 115-230VAC 24V 16.67A BP

Width: 128 mm

Height: 39.5 mm

Length: 77.5 mm

Industry: Medical, Industrial

Approvals: IEC/EN/UL60950-1/60601-1, ES60601-1, IEC/EN/UL62368-1, CE Mark

Dimensions: 128 mm x 77.5 mm x 39.5 mm

Output Power: 400 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 250 W

Power - Forced Air: 400 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 16.67 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
