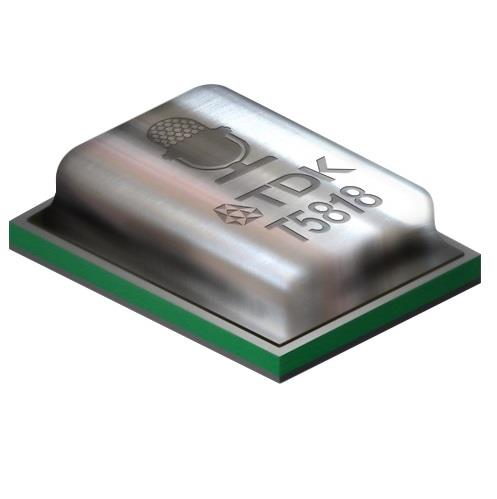

TDK InvenSense MMICT5818-00-012 PDM ພອດລຸ່ມ PDM ໄມໂຄໂຟນຫຼັກພະລັງງານຕ່ຳຫຼາຍໂມດຫຼາຍກັບໂມດ AOP ສູງ

Depth: 0.98 mm

Shape: Rectangular

Width: 2.65 mm

Length: 3.5 mm

Port Type: Bottom

Dimensions: 3.5 mm x 2.65 mm x 0.98 mm

Output Type: Digital

Sensitivity: - 41 dB, - 26 dB

Mounting Style: SMD/SMT

Frequency Range: 40 Hz to 20 kHz

Termination Style: SMD/SMT

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 1.65 V

Directional Properties: Omni

Operating Supply Current: 220 uA, 590 uA

Operating Supply Voltage: 1.8 V

SNR - Signal to Noise Ratio: 66 dBA, 63 dBA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
