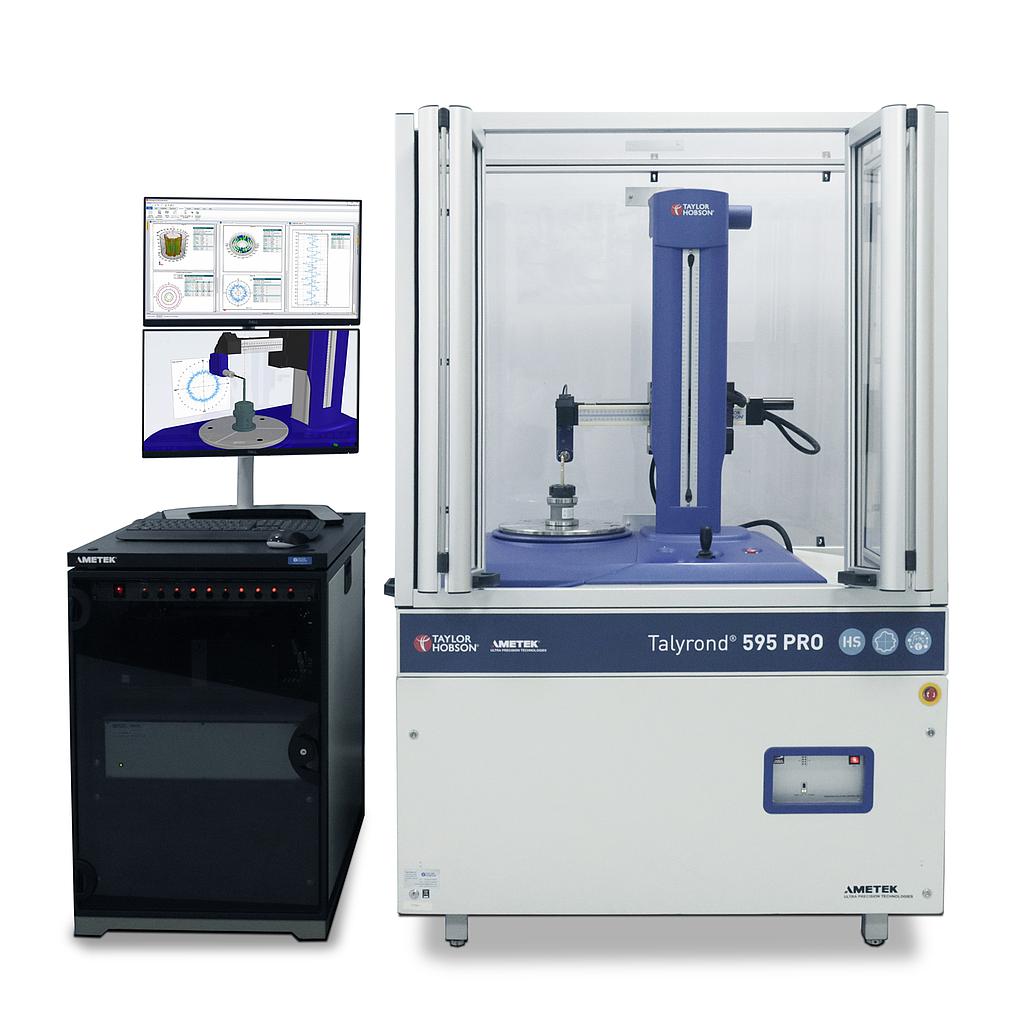

Taylor Hobson 595H PRO ລະບົບວັດຄຸນະສົມບັດຄວາມຖືກຕ້ອງສູງສຸດສ່ວນກົງ, ຄວາມຖືກຕ້ອງຮູບລອດແລະຄວາມຖືກຕ້ອງການດ້ານກາງ

Gauge: up to 4 mm

Resolution, down to 0.3 nm

Roundness: Radial accuracy ± 0.008 μm

Roughness: Noise < 20 nm Rq all axes;  Ra values < 0.05 µm Rq

Contour: LS Arc measurement 5 µm;  Pt 0.5 µm

Key features

Fully Automated arm attitude/orientation mechanism

Self Calibration of arm, column and spindle

Automated gauge calibration

High precision air bearing spindle ± 0.01 µm

Gauge resolution 0.3 nm

Active anti-vibration and environmental isolation system

All axes of the Talyrond® 595H PRO have been precision machined and enhanced further with innovative software corrections giving unmatched straightness and roundness accuracies. The centre and levelling table is fitted with high resolution motors enabling accurate and fully automated set-up to defined targets.

The systems Talymin 6 gauge allows measurement down to nanometric level while the automated arm orientation provides unrivalled versatility ensuring access to the most intricate of parts. Integral to the Talyrond® 595H PRO are the active anti-vibration mounts provided with an environmental enclosure eliminating external influence and allowing measurement closer to the manufacturing process.

Applications

Ball screw - full length of the contact point of the ball screw or lead screw

Camshafts - comparison to a DXF or lift data.

Bearing races - harmonic analysis

Turbochargers - low noise platform combined with the precision air bearing guarantee integrity of results

Roller bearings - roughness, form, roundness and part alignment

Fluid dynamic bearings - roundness, topography and roughness
