Taylor Hobson 585H PRO ລະບົບວັດການຄວາມກົງກັນ, ຄວາມກົງກັນແບບລົງລູກສອນ ແລະ ຄວາມຕົງກັນ

Gauge: up to 4 mm

Resolution, down to 0.3 nm

Roundness: Radial accuracy ± 0.01 μm

Roughness: Noise < 30 nm Rq all axes; Ra values < 0.1 µm Rq

Contour: LS Arc measurement 5 µm;  Pt 0.5 µm.

Key features

Automated Gauge calibration

Automatic Centre and level with arm follow mode

High precision air bearing spindle ± 0.015 µm

Gauge resolution 0.3 nm

300 mm, 500 mm, 1000 mm or 1200 mm Vertical straightness unit

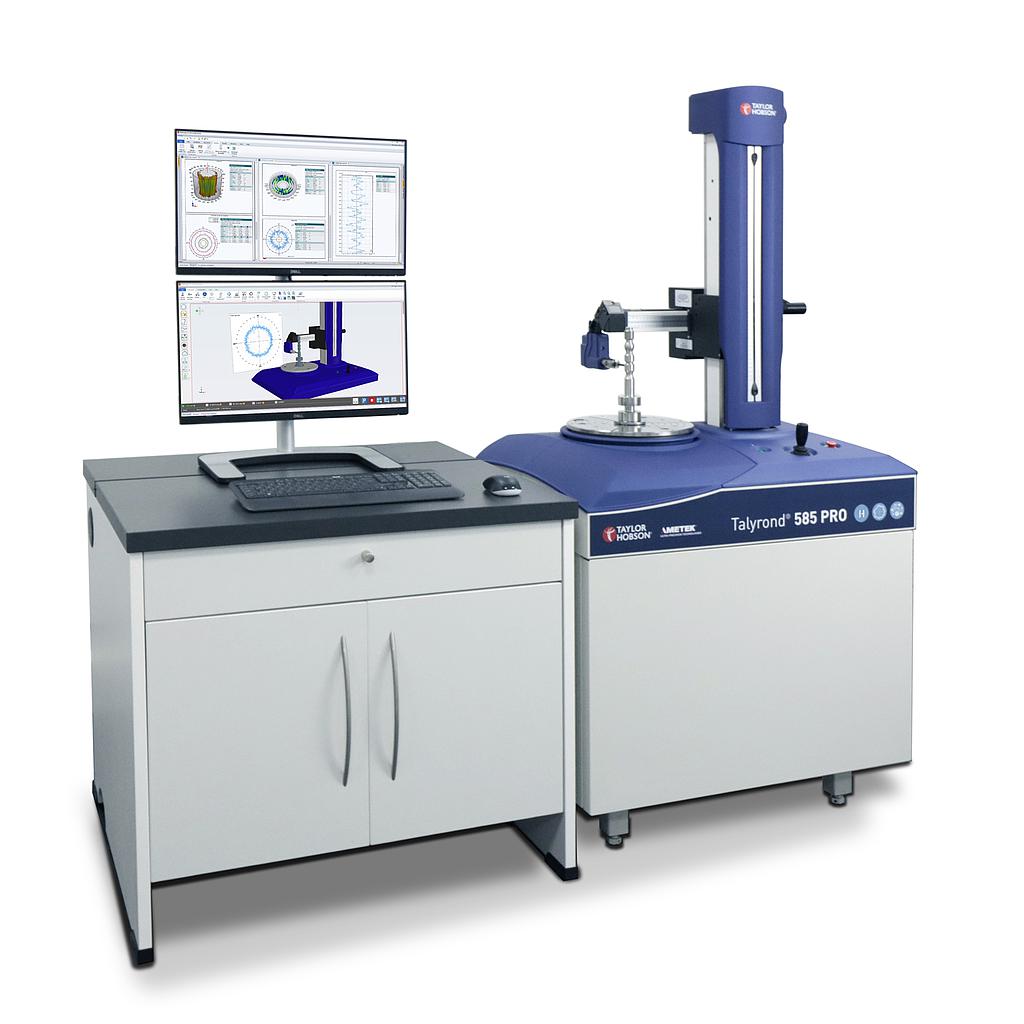

The Talyrond® 585H PRO is a fully automated roundness/cylindricity instrument that is unsurpassed in accuracy and reliability, with 6 versions to choose from offering the right balance of automation and capacity for virtually every application. State of the art electronics have allowed full control of all axes with fast and accurate modes allowing the right combination of measurement and movement speed for the most challenging of components.

Taylor Hobson's patented arm orientation provides full automation in almost any attitude making it the most versatile of instruments and an industry benchmark in roundness instrumentation.

Applications

Ball screw - full length of the contact point of the ball screw or lead screw

Camshafts - comparison to a DXF or lift data.

Bearing races - harmonic analysis

Crankshafts - Roundness, straightness, cylindricity, parallelism, twist and surface texture

Roller bearings - roughness, form, roundness and part alignment

Fluid dynamic bearings - roundness, topography and roughness
