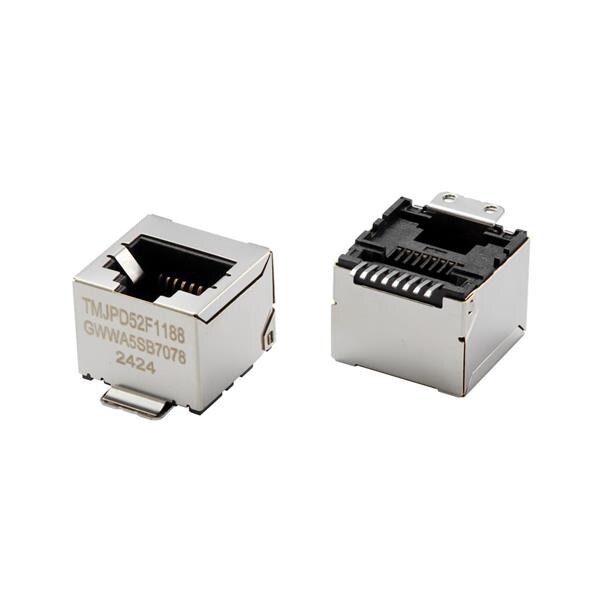

Taoglas TMJPD52F1188GWWA5SB7078 ປຸ່ມ RJ45 Modular Jack Pure RJ45, 1x1, ຕັ້ງຕົ້ນ, SMT, ປົກກັນ, ທອງ 50 ມາຄຣອນ, ລະດັບອຸດສາຫະກຳ

Pitch: 1.27 mm

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: Industrial Automation

Configuration: 1x8

Mating Cycles: 750 Cycles

Tab Direction: Top Entry

Current Rating: 1.5 A

Mounting Angle: Vertical

Mounting Style: PCB Mount

Voltage Rating: 125 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Copper

Termination Style: SMD/SMT

Mounting Direction: Vertical

Number of Contacts: 8 Contacts

Dielectric Strength: 1000 VAC

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
