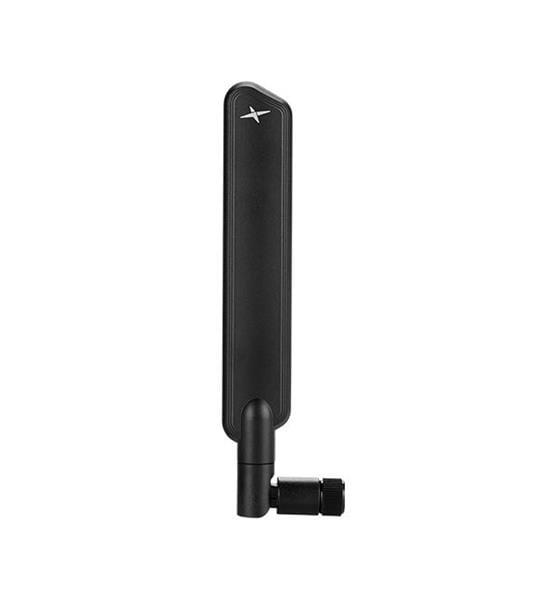

Taoglas TG.55.8113 ແນວຮັບສະສາງອັດຕະໂນມັດ TG.55.8113 5G/4G Terminal Mount Monopole Antenna

Gain: - 0.68 dBi, - 2.14 dBi, 0.15 dBi, - 0.74 dBi, - 0.59 dBi, 1.37 dBi, 0.93 dBi, 0.73 dBi, 1.51 dBi, 1.73 dBi

Style: Blade Tilt / Swivel

Width: 23.9 mm

Height: 13 mm

Length: 172 mm

Impedance: 50 Ohms

Application: Gateways, Routers, Smart Metering, Vending Machinges, Industrial IoT, Smart Home, Connected Enterprise

Unit Weight: 25.012 g

Polarization: Linear

Power Rating: 2 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 10 Band

Center Frequency: 657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3400 MHz, 3600 MHz, 4000 MHz, 5200 MHz, 5800 MHz

Mechanical Style: Whip

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
