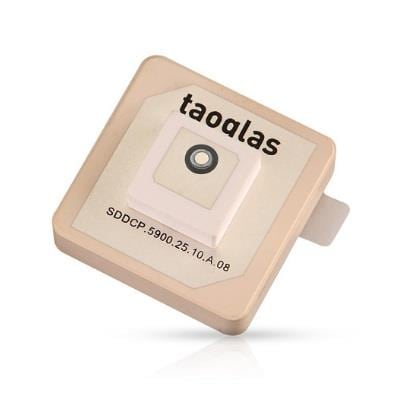

Taoglas SDDCP.5900.25.10.A.08 ແນວຮັບສະສົມ Passive Antenna SDDCP.5900.25.10.A.08 - SDARS ແລະ C-V2X Stacked Patch Antenna

Gain: 3.5 dBi, 5.4 dBi

Style: Stacked

Width: 25 mm

Height: 10.15 mm

Length: 25 mm

Impedance: 50 Ohms

Application: OEM Automotive

Unit Weight: 14 g

Polarization: LHCP, RHCP

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 2.3 GHz, 5.9 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 5.925 GHz

Minimum Frequency: 2.32 GHz

Termination Style: Pin

Protocol - WiFi - 802.11: WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
