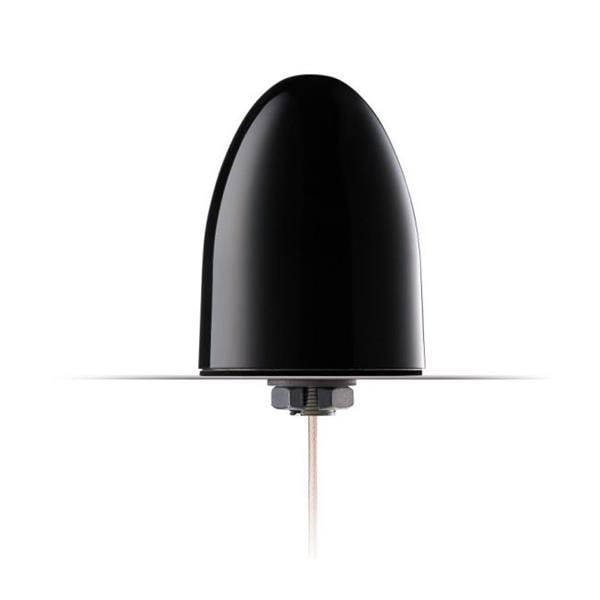

Taoglas QHA.01.A.0159111 ອັນເຕນນາພາສິບບິບ Torpedo -QHA.01.A.0159111 Screwmount L-Band Quad Helix Antenna

Gain: 1.8 dBi, 1.8 dBi, 1.6 dBi, 1.4 dBi

Style: Dome

Length: 120 mm

Diameter: 92.5 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 150 mm LMR195

Application: Transmitters, Receivers

Cable Length: 150 mm

Polarization: RHCP

Mounting Style: Direct / Permanent Mount

Number of Bands: 4 Band

Center Frequency: 1.575 GHz, 1.602 GHz

Mechanical Style: Helical

Maximum Frequency: 1.62 GHz

Minimum Frequency: 1.561 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
