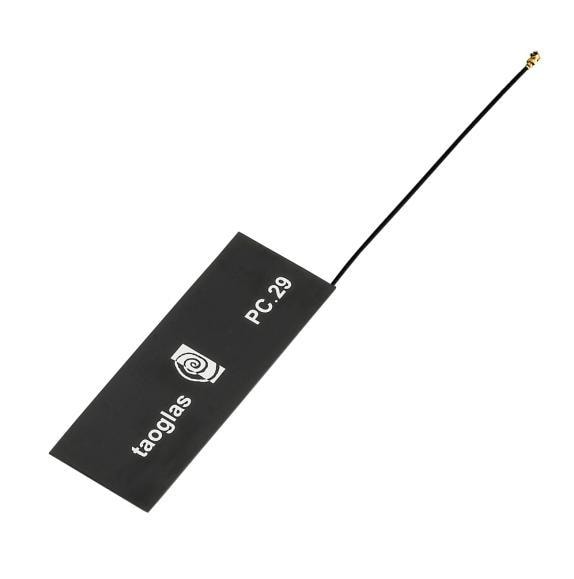

Taoglas PC29.09.0100A ອນເຕນນາ PCB PC29 3G/2G Cell Ant MMCS(M) R/A Conn

Gain: 0.01 dBi, 1.2 dBi, 2.66 dBi, 1.25 dBi, 1.43 dBi

VSWR: 1.58, 1.78, 1.51, 1.38, 1.37

Style: I-Bar

Width: 30 mm

Length: 80 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Technology: Penta Band PCB

Application: Penta Band PCB

Unit Weight: 5.300 g

Cable Length: 100 mm

Polarization: Horizontal

Mounting Style: PCB Mount

Number of Bands: 5 Band

Mechanical Style: PCB Trace

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: MMCX Male

Antenna Connector Type: MMCX Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
