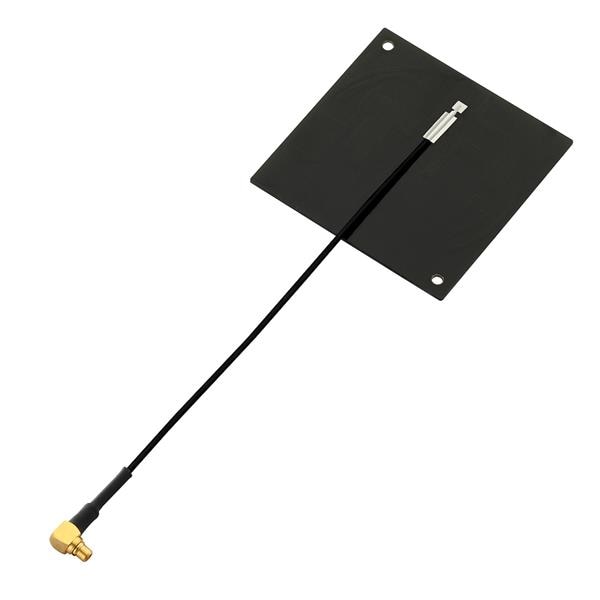

Taoglas PC27.09.0100A ເຄື່ອງຮັບສະຫນາມອັດຕະໂນມັດ 850/900/1800/1900MHz Cell 1.13 MMCX(M)RA

Gain: 0.01 dBi, 1.2 dBi, 2.66 dBi, 1.25 dBi

VSWR: 3.59, 2.02, 2.21, 2.3

Style: I-Bar

Width: 7 mm

Height: 0.8 mm

Length: 34 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Technology: GSM

Application: Cellular Application

Unit Weight: 2.197 g

Cable Length: 100 mm

Polarization: Horizontal

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 1.9 GHz

Minimum Frequency: 800 MHz

Termination Style: Connector

Antenna Connector Type: MMCX Male

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS
