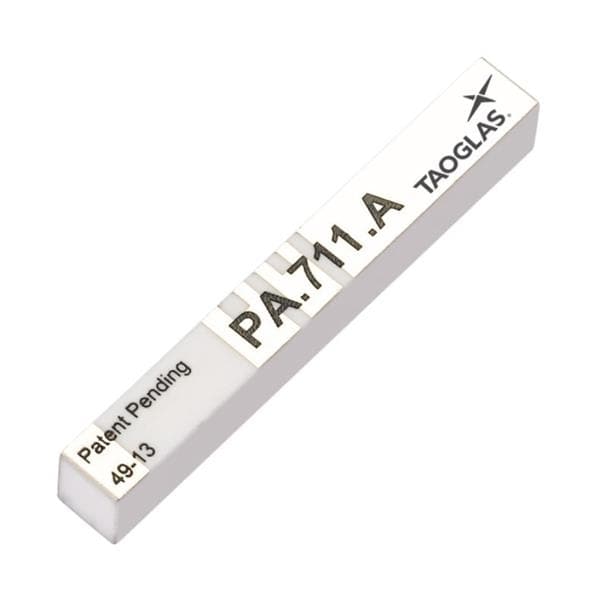

Taoglas PA.711.A ອະນຕີນາພາສິບ ເວຍເຣີ PA.711.A ວາຍແດນ 4G/3G/2G SMD PIFA ອະນຕີນາ 40*6*5mm

Gain: 1 dBi, 2.9 dBi, 4.1 dBi, 2.8 dBi, 4 dBi

VSWR: 3:1

Style: Ceramic

Width: 6 mm

Height: 5 mm

Length: 40 mm

Impedance: 50 Ohms

Application: Transportation, Robotics, Weareables, Autonomous, UAVs, Industrial, IoT Devices

Polarization: Linear

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: PIFA

Number of Bands: 5 Band

Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2350 MHz, 2600 MHz, 3500 MHz, 5200 MHz, 5800 MHz

Mechanical Style: Chip

Maximum Frequency: 5.85 GHz

Minimum Frequency: 698 MHz

Moisture Sensitive: Yes

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
