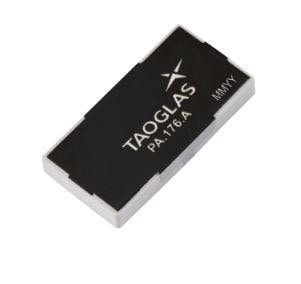

Taoglas PA.176.A ອະນຕີນາພາສິບ PA.176.A 5G/4G ຄວາມຖືກສູງສຳລັບເຄືອຂ່າຍເຄືອງມື SMD

Gain: 3 dBi, 3.3 dBi, 3.8 dBi, 4.5 dBi, 3.7 dBi, 3.6 dBi, 2.8 dBi

VSWR: 3:1

Style: Ceramic

Width: 10 mm

Height: 3 mm

Length: 20 mm

Impedance: 50 Ohms

Application: Telematic Control, Wireless Medical Devices, First Responder, Public Safety Devices, UAVs, Robotics, Media, Smart Home

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: PIFA

Number of Bands: 7 Band

Center Frequency: 1800 MHz, 1900 MHz, 2100 Mhz, 2400 MHz, 2600 MHz, 3400 MHz, 3600 MHz, 3800 MHz, 4200 MHz, 5200 MHz, 5500 MHz

Mechanical Style: Chip

Maximum Frequency: 5.925 GHz

Minimum Frequency: 1.71 GHz

Moisture Sensitive: Yes

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
