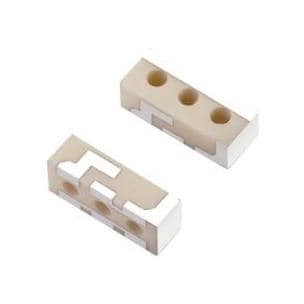

Taoglas PA.11 ແນວຮັບສະຫນາມອັດຕະໂນມັດ PA.11 2.4GHz ແນວຮັບ PIFA ທີ່ມີສິນທິສະຫຼຸບ

Gain: 1.5 dBi

VSWR: 2

Style: Ceramic

Width: 4 mm

Height: 3 mm

Length: 10 mm

Impedance: 50 Ohms

Application: Wireless Application

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: PIFA

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Chip

Maximum Frequency: 2.484 GHz

Minimum Frequency: 2.4 GHz

Moisture Sensitive: Yes

Protocol - Sub GHz: IoT, ISM

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
