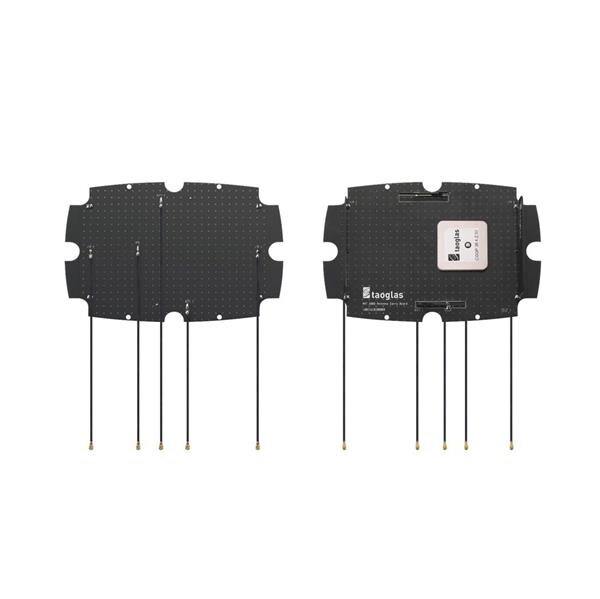

Taoglas MAT.500B ເຄື່ອງຮັບສຽງສົດ MAT.500B 5in1 ບອດເຄື່ອງຮັບສຽງລວມ

Gain: - 1.2 dBi, - 1.6 dBi

VSWR: 2.2, 4, 2:1

Style: Active Module

Width: 103.19 mm

Length: 157.32 mm

Diameter: 18.6 mm

Impedance: 50 Ohms

Cable Type: 1.37 mm Coax

Application: Telematics Devices, Satellites

Mounting Style: PCB Mount

Electrical Type: MIMO

Number of Bands: 11 Band

Center Frequency: 1.57542 GHz, 1.602 GHz, 1.621 GHz

Mechanical Style: Patch

Maximum Frequency: 5.8 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: IPEX

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE)
