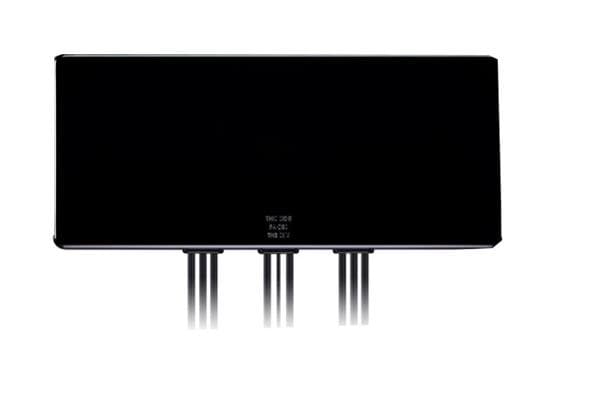

Taoglas MA9909.A.002 MIMO MA9909 9in1 GuardianX ອະເດຊິບພາຍນອກປະສົມອັນເຕນນາ GNSS 8*5G/4G MIMO

Gain: 30 dBi, 31 dBi

VSWR: 2:1

Width: 160 mm

Height: 16.5 mm

Length: 360 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M TGC200 x 8

Application: Passenger Bus, Rail, Air Applications, Automotive, Heavy Equipment, Vehicle Tracking, Telematics, Remote Asset, Pipeline Monitoring, HD Video over LTE, First Responder, Emergency Services, M2M, IoT Devices

Unit Weight: 1.06 kg

Cable Length: 1 m

For Use With: DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WiFi

Polarization: Linear, RHCP

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 9 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 2450 MHz, 5500 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.925 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
