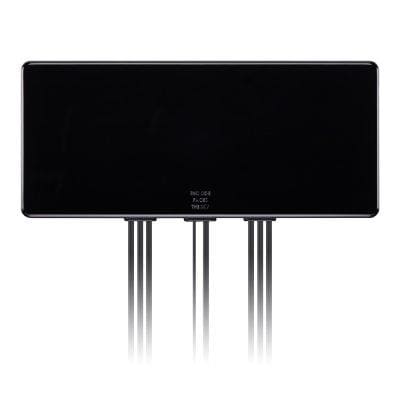

Taoglas MA9908.A.001 ອານຕີນາລລວມການຕິດຕັ້ງການຕິດກັນ MIMO

VSWR: 2

Style: I-Bar

Width: 160 mm

Height: 16.5 mm

Length: 360 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174, 1 M TGC200 x 7

Application: Passenger Bus, Rail, Air Applications, Automotive, Heavy Equipment, Vehicle Tracking, Telematics, Remote Asset, Pipeline Monitoring, HD Video over LTE, First Responder, Emergency Services, M2M, IoT Devices

Unit Weight: 1.25 kg

Cable Length: 1 m

Polarization: Linear, RHCP

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 8 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 2450 MHz, 5500 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.85 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male, SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
