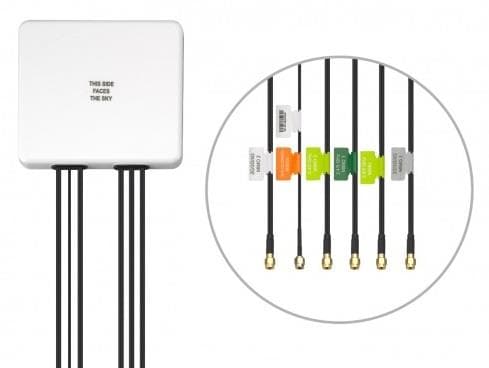

Taoglas MA931.A.LBICGH.001 ອະນເຕນນອກອາກາດ Guardian MA931 6in1 ຕິດກັນກັບການຕິດຕັ້ງ 2*LTE MIMO 3*Wi-Fi MIMO GNSS Antenna

Gain: 28 dBi, 28 dBi, 28 dBi

VSWR: 3:1, 2:1, 3, 3

Style: Panel

Width: 134 mm

Height: 20 mm

Length: 146 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: KSR-200P, RG-174

Technology: Cellular, GPS, LTE, WiFi, MiMo

Application: LTE, GPS, GLONASS, Galileo, BeiDou, WiFi

Cable Length: 1 m

Polarization: Linear, RHCP

Mounting Style: Adhesive Mount

Electrical Type: MIMO

Number of Bands: 6 Band

Center Frequency: 1.57542 GHz, 1.602 GHz, 1.561098 GHz

Mechanical Style: Module

Maximum Frequency: 5.85 GHz

Minimum Frequency: 698 MHz

Termination Style: RP-SMA Male, SMA Male

Antenna Connector Type: RP-SMA Male, SMA Male

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
