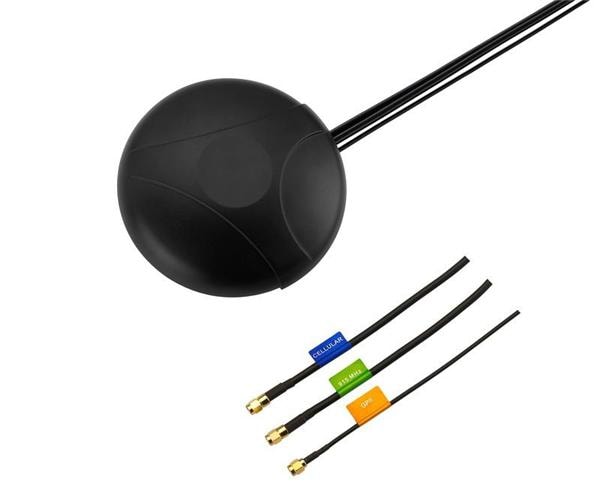

Taoglas MA603.A.ABK.001 ຊຸດອະນທີນາຖານຖາວອນ COMBO ANTENNA

Gain: 5.1 dBi, 2.3 dBi

VSWR: 2, 1.92

Style: Dome

Diameter: 145.6 mm

Bandwidth: 10 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: CFD-200, RG-174

Application: GPS, GLONASS, Galileo, Cellular

Cable Length: 3 m

Polarization: Linear

Mounting Style: Direct / Permanent Mount

Number of Bands: 3 Band

Center Frequency: 1.57542 GHz, 1.602 GHz

Mechanical Style: Module

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
