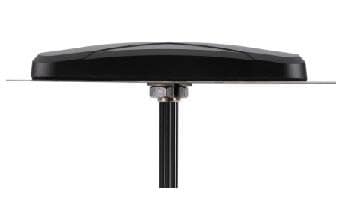

Taoglas MA410.A.LBIJ.001 ອານເຕນນະຄອມໂບມຕິດຕັ້ງຖາວອນ MIMO

Gain: 29 dBi, 29 dBi, 32 dBi

VSWR: 2:1, 3.5, 2

Style: Dome

Width: 93.25 mm

Height: 30.95 mm

Length: 216.24 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 M RG174, 1 M CFD200

Technology: Cellular, GPS, LTE, MiMo

Application: High Speed Data Links, Automotive, Heavy Equipment, Vehicle Tracking, Telematics, Remote Asset, Pipeline Monitoring, HD Video over LTE, First Responder, Emergency Services, Global Data Communication, IoT Devices

Cable Length: 1 m

Polarization: Linear, RHCP

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 1575.42 MHz, 1602 MHz, 2450 MHz

Mechanical Style: Module

Maximum Frequency: 3.6 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
