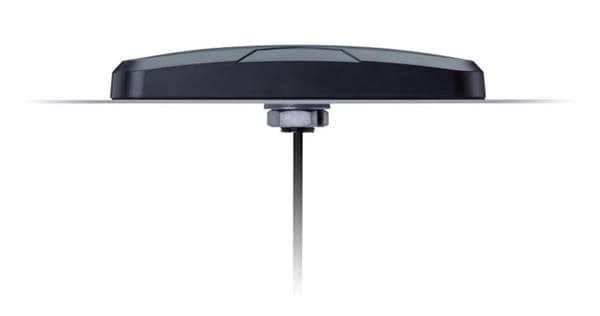

Taoglas MA173.A.LBI.001 MIMO Monsoon MA173.A.LBI.001 3in1 GNSS, LTE MIMO Low Profile Permanent Mount Antenna

Gain: 32 dBic

Style: Dome

Width: 69 mm

Height: 31 mm

Length: 204 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M CFD200 x 2, 3 M RG174

Application: HD Video over LTE, Intelligent Transport Systems, IoT Devices, HD Video Broadcast Systems, Wireless M2M Devices, Digital Signage, First Responder, Emergency Services

Cable Length: 3 m

Polarization: RHCP, Vertical

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 3 Band

Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2500 MHz, 3400 MHz, 3500 MHz, 3800 MHz, 4200 MHz, 4800 MHz 5000 MHz, 5500 MHz, 5800 MHz, 1575.42 MHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 5.925 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
