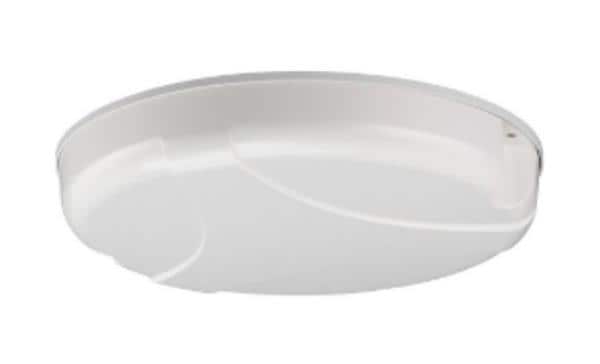

Taoglas iDAS.C.001 ເຄື່ອງຮັບສະຫນາມອະນາເທນ iDAS.C.001 MIMO 5G/4G ຕິດຕູ້ພາຍໃນພື້ນຫຼັງ ອະນາເທນທົ່ວທິດ

Gain: 3.8 dBi, 2.9 dBi, 5 dBi, 5 dBi, 4.9 dBi, 6.5 dBi, 4.7 dBi

Style: Dome

Length: 38 mm

Diameter: 218 mm

IP Rating: IP54

Impedance: 50 Ohms

Cable Type: 300 mm RG402

Application: Stadiums, Arenas, Convention Centers, Hotels, Shopping Malls, Hospitals, Factories, Warehouses, Airports, Train Stations, Bust Stations, Schools, College Campuses, Office Buildings, High Density Residential Complexes

Cable Length: 300 mm

Polarization: Linear

Power Rating: 50 W

Mounting Style: Ceiling Mount

Number of Bands: 7 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 3700 MHz

Mechanical Style: Module

Maximum Frequency: 3.8 GHz

Minimum Frequency: 699 MHz

Termination Style: Connector

Antenna Connector Type: 4.3 Mini-DIN Female

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
