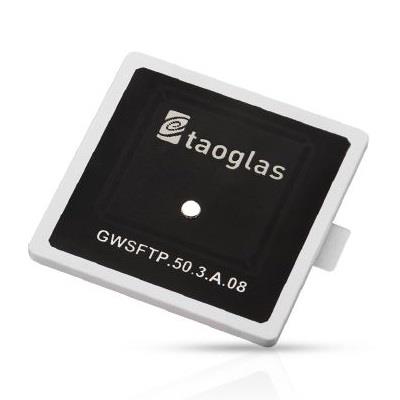

Taoglas GWSFTP.50.3.A.08 ອານເຕນາ PCB GPS L1 & WiFi Single Feed 50*50*3mm Terrablast Patch

Gain: 1.6 dBi, 0.1 dBi

Style: Stacked

Width: 50 mm

Height: 3 mm

Length: 50 mm

Impedance: 50 Ohms

Application: Agriculture, Defense, GPS, Marine, WiFi

Unit Weight: 15.800 g

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 1.57542 GHz, 2.4 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 2.5 GHz

Minimum Frequency: 1.574397 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
