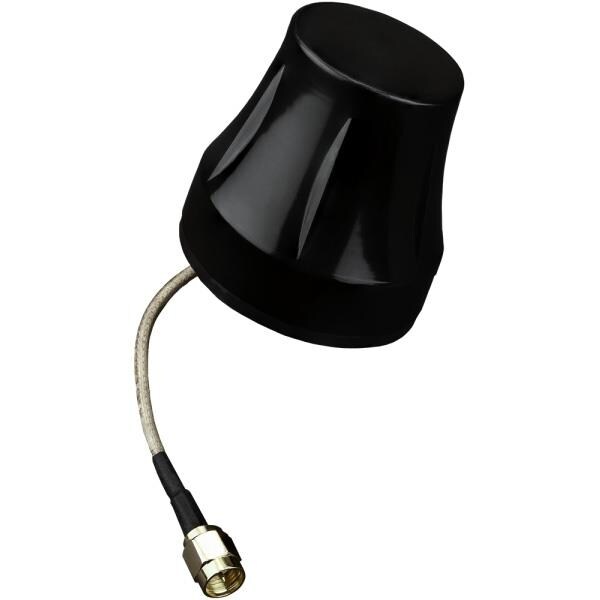

Taoglas G30.B.108111 ອະນຕີນາພາສິບອລິມເປຍນ G30 4G/3G/2G LTE ອະນຕີນາຖືກຕິດຕັ້ງຖາວອນ, 1m RG-316

Gain: 1.2 dBi, 3.2 dBi, 2.5 dBi, 1.5 dBi

VSWR: 3.0:1

Style: Dome

Length: 48 mm

Diameter: 50 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG316

Application: Cellular Application

Unit Weight: 66 g

Cable Length: 1 m

Polarization: Linear

Power Rating: 5 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 4 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2650 MHz, 2450 MHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 2.8 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, GPRS, EDGE, IMT
