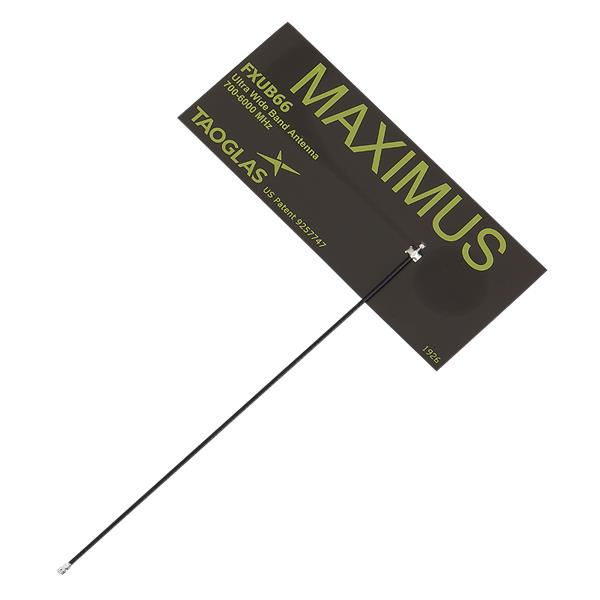

Taoglas FXUB66.54.0150C ແນວຮັບສະຫນາມອັດຕະໂນມັດ FXUB66.54.0150C Maximus Wide Band 5G/4G 600-6000MHz ແນວຮັບສະຫນາມ PCB ຍືນຍົວ

Gain: - 2.4 dB

Style: T-Pad Flex

Width: 50.4 mm

Height: 0.2 mm

Length: 120.4 mm

Frequency: 600 MHz to 6 GHz

Impedance: 50 Ohms

Cable Type: 150 mm RF1.37

Application: Ultra Wide-band Application

Cable Length: 150 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Frequency Range: 600 MHz to 6 GHz

Number of Bands: 9 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1400 MHz, 1575.42 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2600 MHz, 3500 MHz, 5400 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: I-PEX MHF 4L

Protocol - GPS, GLONASS: Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
