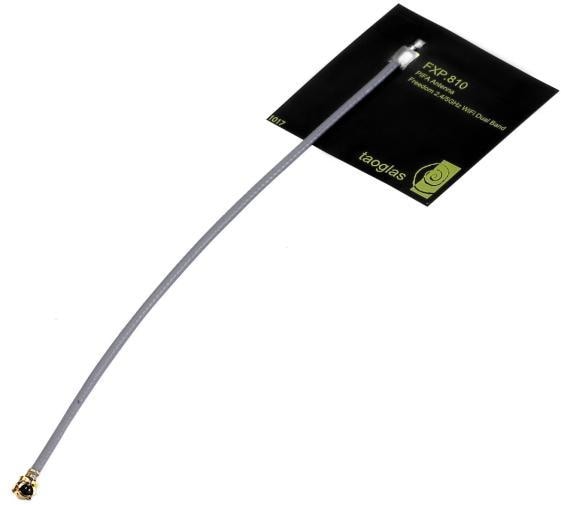

Taoglas FXP810.07.0100C ອະນຕີນາພາສິບ ຟຣີໂດມ FXP810 2.4/4.9-6.0GHz ອະນຕີນາພາ Flex PCB, 100mm oe1.37, I-PEX MHFIU.FL

Gain: 1.5 dBi, 5.1 dBi

VSWR: 1.7:1

Style: I-Bar Flex

Width: 31 mm

Height: 0.1 mm

Length: 31 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.37

Application: Wireless Application

Unit Weight: 1 g

Cable Length: 100 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.8 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID

Antenna Connector Type: U.FL Female

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, DSRC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
