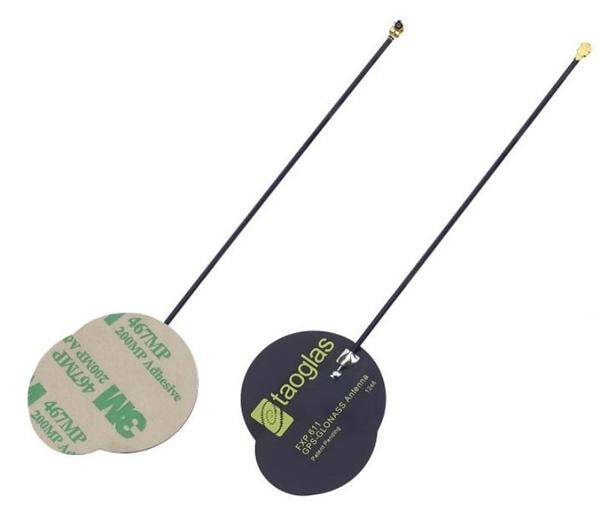

Taoglas FXP611.07.0092C ເຄື່ອງຮັບສະຫນາມປະຕິບັດ FLEXIBLE PCB GNSS ANTENNA

Gain: 3 dBi

VSWR: 1.2:1

Style: Round Flexible

Width: 37 mm

Height: 0.15 mm

Length: 38 mm

Impedance: 50 Ohms

Cable Type: 92 mm RF1.37

Application: Positioning Accuracy

Unit Weight: 249.480 g

Cable Length: 92 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: PCB Trace

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.559 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
