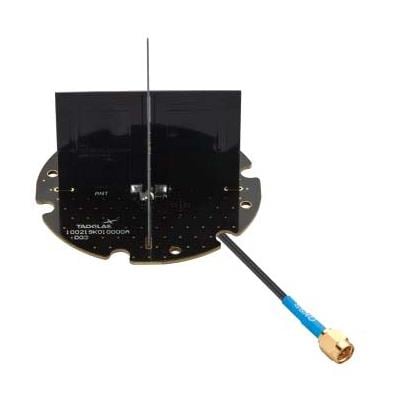

Taoglas EAHP.50.01.0100D ເຄື່ອງຮັບສະສົມສະຕິກະຕິ ACTIVE CROSS DIPOLE GNSS ANT

Gain: - 3.5 dBi, - 3 dBi, - 2.8 dBi, - 2.7 dBi, - 2.3 dBi, - 2.3 dBi

VSWR: 1.3:1, 1.3:1, 1.5:1, 1.5:1, 1.5:1, 1.4:1

Length: 42 mm

Diameter: 75 mm

Impedance: 50 Ohms

Cable Type: 100 mm RG174

Application: Autonomous Vehicles, Precision Agriculture, Robotics, Inventory Mangement, Telematics

Mounting Style: Screw Mount

Electrical Type: Dipole

Number of Bands: 6 Band

Center Frequency: 1.2276 GHz, 1.27875 GHz, 1.561 GHz, 1.57542 GHz

Mechanical Style: Module

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
