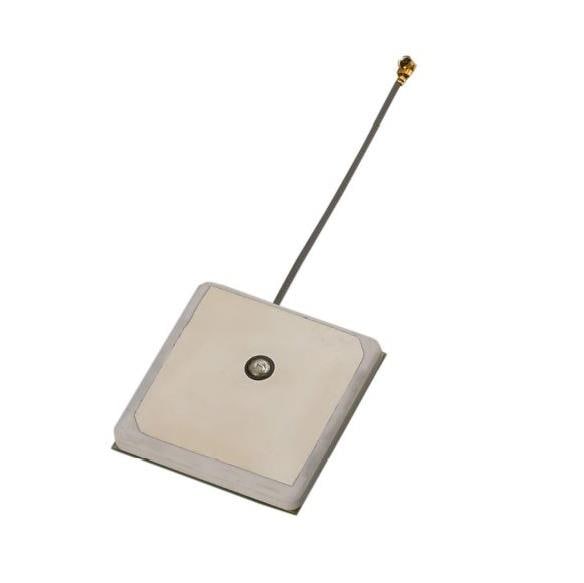

Taoglas AP.35E.07.0054A ອານເຕນາ PCB AP.35E - 1 ຊັ້ນ 15dB-54mm 1.13 I-PEX MHFI - ຕົວກັບກັນ SAW

Gain: 17.5 dBi

VSWR: 2

Style: Ceramic

Width: 35 mm

Height: 3.5 mm

Length: 35 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Cable Length: 62 mm

Polarization: RHCP

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Patch

Ground Plane Size: 35 mm x 35 mm x 5.5 mm

Maximum Frequency: 1.576443 GHz

Minimum Frequency: 1.574397 GHz

Termination Style: U.FL

Antenna Connector Type: MHF1 U.FL

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
