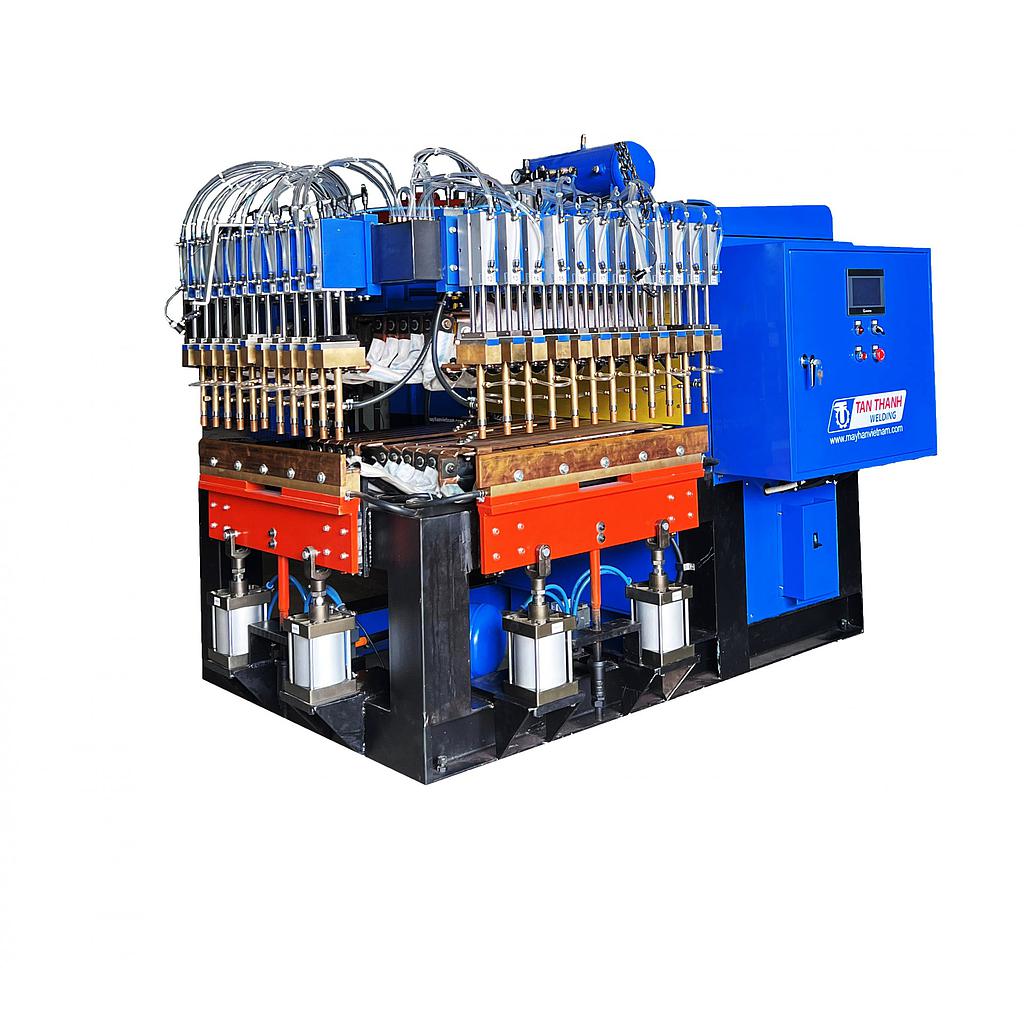

Tân Thành HBH-23 ĐIỂM ເຄື່ອງເຊື່ອມ Pneumatic 23-Spot (300KVA)

◦ Input voltage (V): 3 phase-380

◦ Frequency (Hz): 50/60

◦ Capacity (KVA): 300

◦ Working cycle (%): 60

◦ Maximum horizontal workpiece length (mm): 2000

◦ Maximum vertical workpiece length (mm): 1000

◦ Maximum workpiece (mesh) diameter ϕ (mm): 2 - 4

◦ Box iron billet (mm): 10x20/25x25

◦ Thickness of box iron billet (mm): 1 – 1.2

◦ Number of boxes on top - horizontal row: 11

◦ Number of welding points - horizontal rows: 11

◦ Number of boxes on top - vertical row: 12

◦ Number of welding points - vertical rows: 12

◦ Number of boxes below - horizontal row: 1

◦ Number of boxes below - vertical row: 1

◦ Horizontal axis positioning function: Laser

◦ Vertical axis positioning function: Laser

◦ Sliding table: Yes

◦ Net tension function: Yes

◦ Ben control: Pneumatic

◦ Cool down: Water

◦ Welding time for mesh size 1497 x 933.5 (seconds): 44 (± 15 %)

- not include embryo mounting time

◦ Welding time for mesh size 942 x 868.5 (seconds) : 28 (± 15 %)

- not include embryo mounting time
