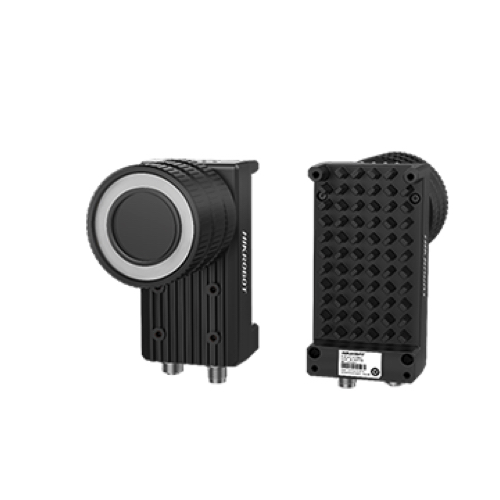

Tân Hưng Hà MVHID-6200M ຜູ້ອ່ານລະຫັດສະມາດ (2.4 µm × 2.4 µm; 5440 × 3648CMOS)

Symbologies: 1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14 2-dimensional codes: QR Code, Data Matrix

Max. frame rate: 20 fps

Max. reading speed: 60 codes/sec

Sensor type: CMOS, rolling shutter

Pixel size: 2.4 µm × 2.4 µm

Sensor size: 1 inch

Resolution: 5440 × 3648

Exposure time: 16 μs to 0.5 sec

Gain: 0 dB to 40 dB

Mono/color: Mono

Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP

Data interface: GigE

Digital I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.

Power supply: 12 VDC to 24 VDC

Max. power consumption: 12 W@24 VDC

Lens mount: C-mount

Light source: Not included

Lens cap: Included

Dimension: 126 mm × 66 mm × 113.2 mm

Weight: Approx. 750 g (1.7 lb.)

Ingress protection: IP67 ( under proper installation of waterproof lens cap)

Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity: 20% to 95% RH, non-condensing

Client software: IDMVS

Certification: CE, RoHS
