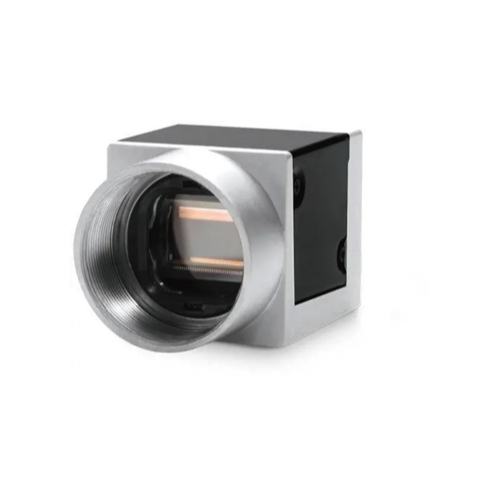

Tân Hưng Hà MVAC-ACA54-UM ກ້ອງ USB 3.0 ກັບ Sony IMX183 (5496 x 3672 pixels; 5472 x 3648 pixels)

Resolution (H x V Pixels): 5496 x 3672 (full resolution) 5472 x 3648 (default resolution)

Resolution: 20 MP

Sensor Type: Sony IMX183CLK-J / Progressive scan CMOS / Rolling shutter

Sensor Format: 1 inch

Effective Sensor Diagonal: 15.86 mm

Pixel Size (H x V): 2.40 x 2.40 μm

Frame Rate (at Default Settings): 17 fps

Mono / Color: Mono

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈2.9 W (typical) @ 5 VDC

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) 48.2 x 29 x 29 mm (with lens mount and connectors

Weight: <80 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam 2.x (including PFNC 2.x and SFNC 2.x), IP30, USB3 Vision, REACH, KC
