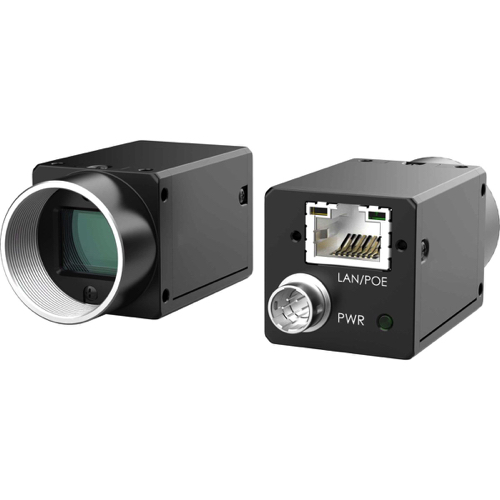

Tân Hưng Hà MVAC-200-10GC ກ້ອງຖ່າຍຮູບ (2.4 μm × 2.4 μm; 5472 × 3648)

Sensor type: CMOS, rolling shutter

Sensor model: IMX183

Pixel size: 2.4 μm × 2.4 μm

Sensor size: 1 inch

Resolution: 5472 × 3648

Max. frame rate: 5.9 fps @5472 × 3648

Dynamic range: 65.5 dB

SNR: 41.5 dB

Gain: 0 dB to 24 dB

Exposure time: 46 μs to 2.5 sec

Exposure mode: Off/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode

Mono/color: Color

Pixel format: Mono 8/10/12, Bayer GB 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8

Binning: Supports 1 × 1, 2 × 2, 4 × 4

Decimation: Supports 1 × 1, 2 × 2

Reverse image: Supports horizontal and vertical reverse image output

Data interface: GigE

Digital I/O: 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

Power supply: 9 VDC to 24 VDC, supports PoE

Power consumption: Typ. 2.5 W@12 VDC

Lens mount: C-Mount

Dimension: 29 mm × 29 mm × 42 mm

Weight: Approx. 100 g

Ingress protection: IP40 (under proper lens installation and wiring)

Temperature: Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity: 20% to 95% RH, non-condensing

Client software: MVS or third-party software meeting with GigE Vision Protocol

Operating system: 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS

Compatibility: GigE Vision V2.0, GenICam

Certification: CE, RoHS, KC
