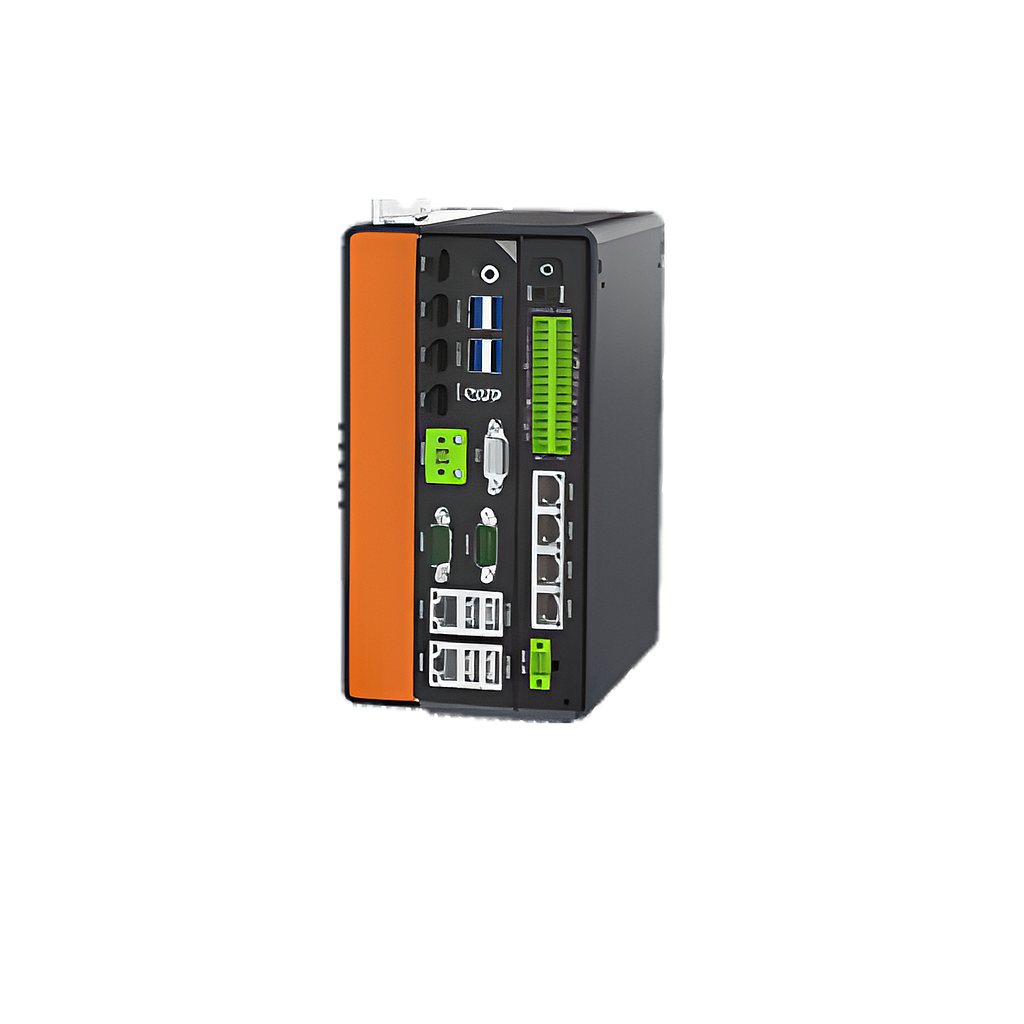

Tân Hưng Hà MV-IPCVC3704X ຕົວຄວບຄຸມວິໄສທັດ (24 VDC)

Type: Vision Controller，Unsupported POE&PCI-E

Memory: 16 GB

Operating system: Unactivated 64-bit Windows 10

Digital I/O: Opto-isolated input × 8, opto-isolated output × 16 Output supports NPN/PNP switch

Network interface: GigE interface × 6

USB interface: USB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1

Serial port: RS-232 × 2, supports switching to RS-485 and RS-422

Light interface: 24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)

Extended interface: PCIe 3.0 ×16 ( × 1)

Power supply: 24 VDC

Power consumption: Typ. 95 W

Temperature: 0 °C to 50 °C (32 °F to 122 °F)

Humidity: 20% to 95% RH, non-condensing

Certification: CE, KC, CCC
