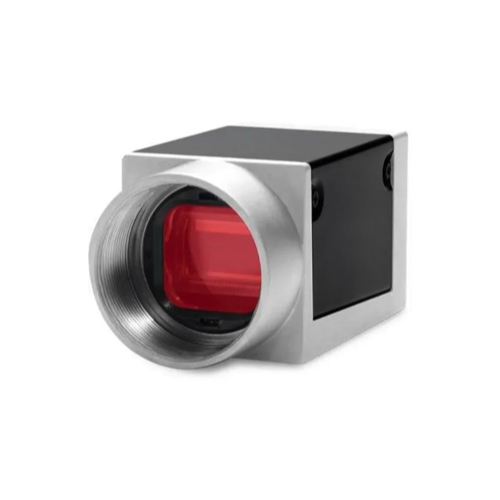

Tân Hưng Hà acA1600-60gc ກ້ອງສ່ວນສະແກນພື້ນທີ່ (1600 px × 1200 px; 4.5 μm × 4.5 μm; 2MP)

Camera Category: Area Scan Camera

Sensor: EV76C570

Shutter: Global & Rolling Shutter

Sensor Format: 1/1.8 inch

Sensor Diagonal: 9 mm

Sensor Type: CMOS

Sensor Size: 7.2 mm × 5.4 mm

Resolution (H x V): 1600 px × 1200 px

Resolution: 2 MP

Pixel Size (H x V): 4.5 μm × 4.5 μm

Frame rate: 60 fps

Mono/Color: Color

Spectrum: Visible

Interface: GigE

Pixel Bit Depth: 12 bits

Synchronization: Ethernet connection; free-run; hardware trigger

Exposure Control: programmable via the camera API

Digital Input: 1

Digital Output: 1

Power Supply: PoE or 12 VDC

Power Requirements (typical): 2.1 W

Power Consumption PoE: 2.7 W

Housing Type: Box

Housing Size (L x W x H): 42 mm x 29 mm x 29 mm

Lens Mount: C-mount

Operating Temperature: 0 °C - 50 °C

Conformity: CE, EAC, FCC, GenICam, GigE Vision, IEEE 802.3af (PoE), IP30, KC, RoHS, UL
