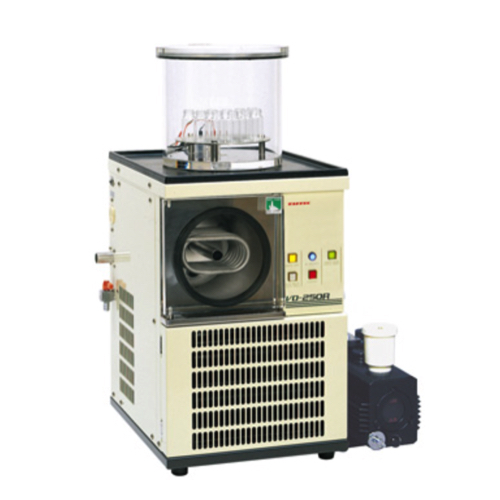

TAITEC VD-250R ເຄື່ອງອົບແຫ້ງແຊ່ແຂງ (-45℃; 500mL/time)

ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

Cooling temperature: -45℃ (at no load) (*)

Trapping volume: Approx. 500mL/time

Volume inside chamber: Approx. 4L (Inner dia. 160 x 205mm)

Compressor: 250 W

Recommended vacuum pump: Oil-sealed Rotary Vacuum pump (Ultimate pressure below 50 Pa, Displacement above 100 L/min)

Vacuum hose connection port: For outer dia. φ22 mm (Rc 3/8 Thread on inner surface, Convertible to different dia.), a hose with an inner diameter of φ18 mm is basically used.

Vacuum release: Leakage port with filter on the side of the body (N2 Gas purge combined use, Hose attachment port, Pisco φ6 mm), automatically released by halting the vacuum pump.

Other functions: Hot gas defrosting (thawing in approx. 30 minutes, outlet for the vacuum pump interlocking (Max. 3 sockets, 9 A, with operation switch)

Dimensions/Weight: 375 x 420 x 525 Hmm, Approx. 34kg

Power supply: AC100V/6A /Max.15A(Need a step-down transformer)

Standard accessories: Table mat × 1 pc


Catalog


(*)The value under ambient temperature 5℃ to 35℃.

•The Vacuum gauge and Solenoid valve are not operated unless the operation switch of service outlet for pump turned on. The power supply from the switchboard is recommended at the interlocking.
