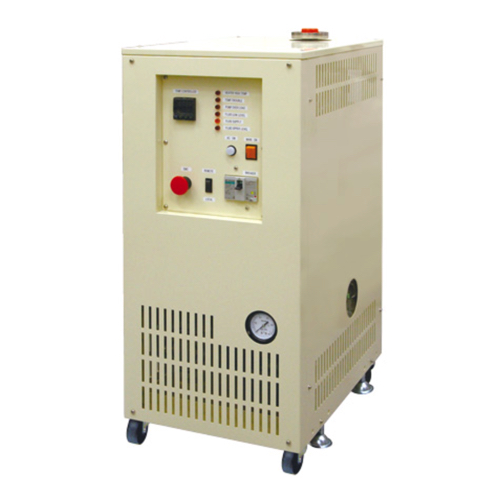

TAITEC TEX-25A ເຄື່ອງແລກປ່ຽນຄວາມຮ້ອນ (+70℃ ~ +200℃; ±0.5℃; 2.5kW)
Temperature range: +70℃ to +200℃
Control accuracy(*1): PID controller, ±0.5℃
Heater output: 2.5kW
Pumping capacity: Flow rate: 14L/min(0.2 MPa, when circulating fluid is +150℃)
Motor output: 1.1kW
Temp. rise and drop time(*2):
Temp. rise time (+70℃→+200℃):approx. 30 min (cooling water OFF)
Temp. drop time (+200℃→+70℃):approx. 25 min (cooling water ON), Cooling water condition：approx.8L/min at +20℃
Safety device/function: Short/Over current breaker, Circulating fluid high temperature, Temperature abnormal, Low fluid cut off, Liquid high-level, Pump overload
INPUT/OUTPUT functions: Remote temperature control connector, Heater ON/OFF input, Cooling water ON/OFF input, Temp. monitor signal output, Safety device actuation signal output
Heating medium (Circulating fluid): GALDEN® HT270 or HT200 (cannot be mixed in)
Fluid tank capacity: approx. 3L (＋Reserve tank：approx. 7L)
Connecting pipe diameter: Circulating fluid in/out：Rc1/2, Primary cooling water in/out: Rc1/2
Dimensions ／ Weight: 406×761×924 mm, approx. 115kg
Power Supply (three phase AC200V, 50/60Hz): 15A
Operation current: 12A
Standard accessories: Signal connector, power connector
