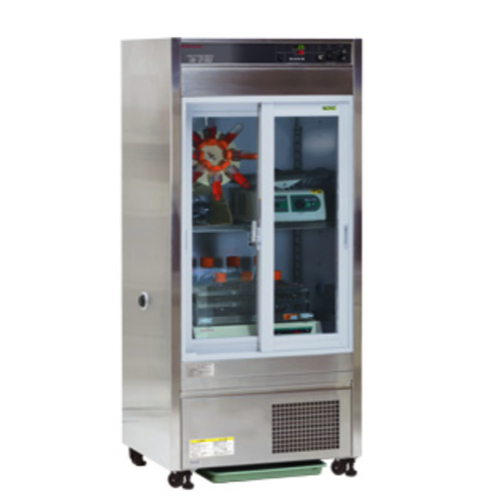

TAITEC iB-230 ຫ້ອງອຸນຫະພູມຄົງທີ່ (ຂະໜາດກາງ) (3℃ ~ 45℃; ±1.0℃ ~ 2.0℃)

Temperature range: 3℃ to 45℃

Temp. control accuracy (*1): ±1.0℃ to 2.0℃

Chamber volume: Approx. 230L

Heater/Compressor: 700W/130W

Outlet inside chamber: 1 x 2-Socket (3A in total)

Connecting hole: On both sides (Each φ36 mm) the Lid is included.

Circulating method inside chamber: Forced circulating-type (*2)

Num. of Shelf/Allowable weight: 2 level/60kg each (Equal weight)

Interior/Exterior material: Stainless steel (SUS304) except for some part

Safe devices/protections: Overload relay, Temp. sensor error diagnosis, Temp. range over alarm, Memory error alarm, and Compressor High temp. cut circuit

Dimensions inside chamber: 600(W) x 440(D) x 870(H)mm

Int. Dimension: 670(W) x 650(D) x 1475(H)mm

Weight: Approx. 90kg

Power supply (*3): AC100V/8A /Max.11A (Need a step-down transformer)

Standard accessories: Shelf × 2 pc, Pallet × 1 pc, Drip tray × 1 pc, Door key × 2 pc

Catalog

(*1)Useable ambient temperature 5℃ to 30℃. The accuracy does not include the fluctuations when switching the solenoid valve is not included.

(*2)Strengthen it when there is a lot of condensation and Weaken it when the sample is dry.

(*3)When the outlet inside the chamber is used, the power will increase according to the power supply capacity of the device used.

•1 set of Shaker NR-1/2/3 can be put on the bottom of the chamber in iB-230. There is a limitation on the shaking speed for use. Described for details in the manual of these products. Any devices that do not generate large vibrations such as a Rotator or Seesaw shaker can be used on the shelf (Each device is verified for operating inside the chamber by TAITEC).
