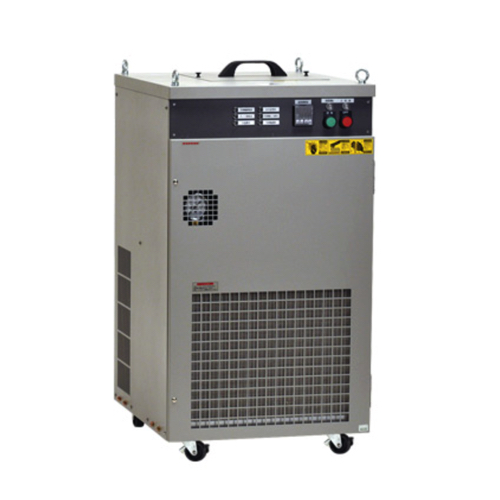

TAITEC HC-03 ເຄື່ອງໝູນວຽນນ້ຳຮ້ອນ (+40℃ ~+80℃; ±0.5℃; 3.0kW)

Temperature range: +40℃ to+80℃(*1)

Control accuracy: PID controller, ±0.5℃ (*2)

Heater output: 3.0kW

Pump capacity (50/60Hz):

Max. discharge pressure: 0.52MPa

Flow rate: 22/31 L/min (*3)

Motor output: 0.4kW

Water bath capacity (at 80% water level): 28L

Safety device/function: Short/Over current breaker, Phase-reversal relay, Warning and Cut off for low water, Circulating water high temperature, Pump overcurrent, Overheating protection

Connecting pipe diameter (Circulating fluid in/out): Rc3/4

Dimensions: 386×512×865 mm

Weight: approx. 90kg

Power Supply (three phase AC200V, 50/60Hz): 15A

Operation current (50/60Hz): 12A

Catalog

(*1)The lower limit may change depending on operating conditions. Cannot be used for applications on circulating water returns for temperature increases.

(*2)Cooling water is required up to approx. +60℃.

(*3)Capacity when using tap water. The value when the discharge pressure at 0.3 MPa.

•The sensitivity current in ELCB should be set larger than 30 mA.

•The primary cooling water is required when the cooling function is added. The cooling capacity depends on the cooling water conditions (Water temperature and Flow rate).
